Triflex triangle-overlay

TRIFLEX

Premium quality Triflex Series GF-200AB and GFN-200 Microfiberglass Filter Cartridges deliver high-purity using proprietary technology.

Interested?

Triflex

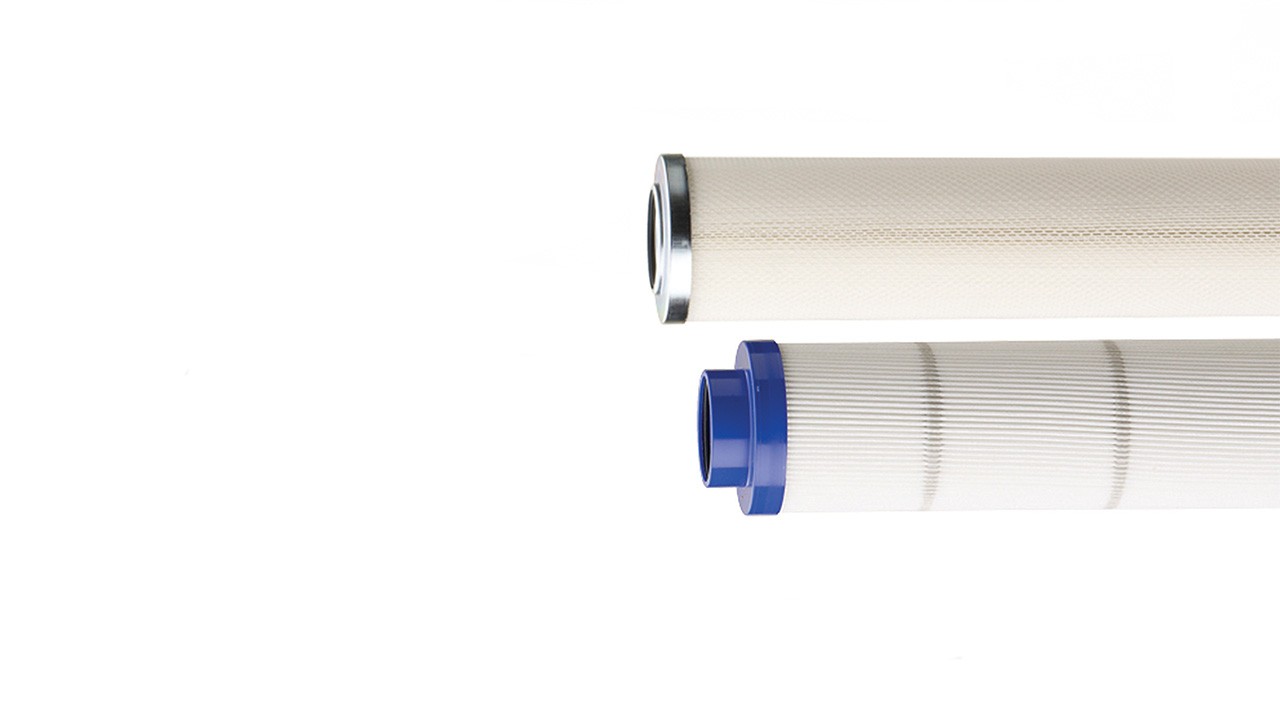

Premium quality Triflex series GF-200AB and GFN-200 microfiberglass filter cartridges.

Features

  • Available in a wide selection of sizes, micron ratings, materials, and endcap configurations
  • Proprietary high-efficiency glass microfiber media
  • True gradient density matrix with tapered pore structure
  • Encapsulated endcap and gasket design
  • Customization configurations available
  • Ideal for a wide variety of applications
  • GF cartridges have 99.98% (Beta 5000) efficiencies at stated micron ratings
  • Reduced change-out frequency
  • Minimal fiber migration that can result in downstream contamination
  • Captures gels and amorphous contaminants from a fluid stream
  • High dirt holding capacities, high flow rates

functional description

Premium quality Triflex Series GF-200AB and GFN-200 Microfiberglass Filter Cartridges deliver high-purity nominal or absolute filtration using proprietary technology. These cartridges are ideal for a wide variety of applications that require high-performance filtration with low pressure drops. Triflex Mega Series GF-600AB Cartridges are large 6- and 6.5-inch diameter coreless pleated cartridges that offer inside-to-outside flow patterns. These uniquely constructed cartridges offer greater flow rates per element, fewer elements to change-out, and smaller housings. The proprietary microfiber glass media offers absolute (Beta 5000) levels of consistent filtration.

Triflex Series GF-200AB Cartridges feature optimized construction for true depth loading. This allows for superior dirt-holding capacity, high flow rates and long cartridge life. These cartridges are ideal for a wide variety of applications that require high-performance filtration with low pressure drops.

Triflex Mega Series GF-600AB Cartridges are a unique line of larger diameter, absolute-rated cartridges that are designed to maximize flow, service life and efficiency. These cartridges require significantly smaller housings and fewer elements.


WHAT IT DOES

MICROFIBERGLASS FILTER CARTRIDGES – TRIFLEX SERIES

Triflex Series GF-200AB Cartridges feature optimized construction for true depth loading. This allows for superior dirt-holding capacity, high flow rates and long cartridge life. These cartridges are ideal for a wide variety of applications that require high-performance filtration with low pressure drops.



applications

Biflex Cartridges use pleated Cellulose Polyester media which uses in most process fluids and chemicals applications such as water, brine, amines, and fuels. Applications include:

  • Chemicals
  • Electronics
  • Magnetic Media
  • Pharmaceutical
  • Photographic
  • Oil & Gas
  • Water
